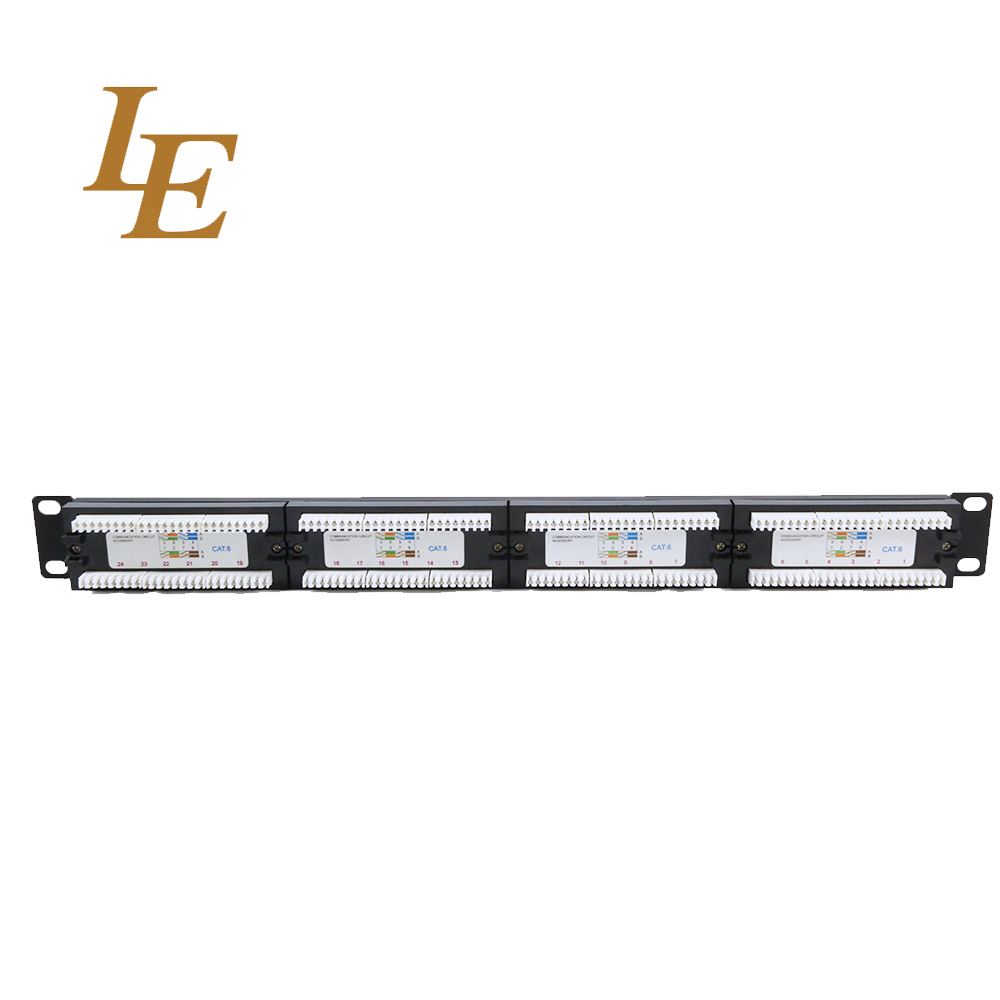

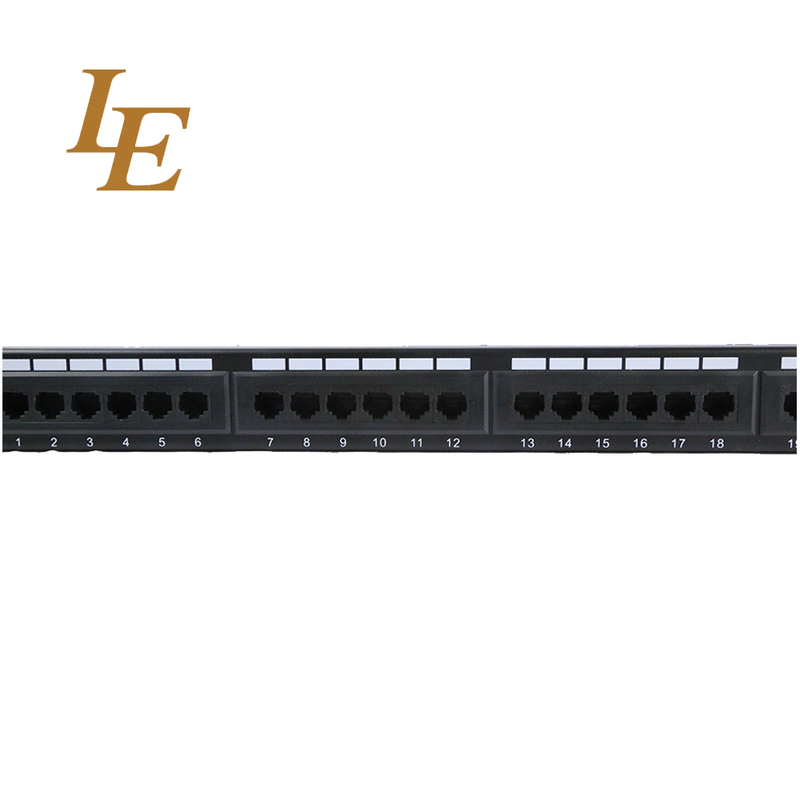

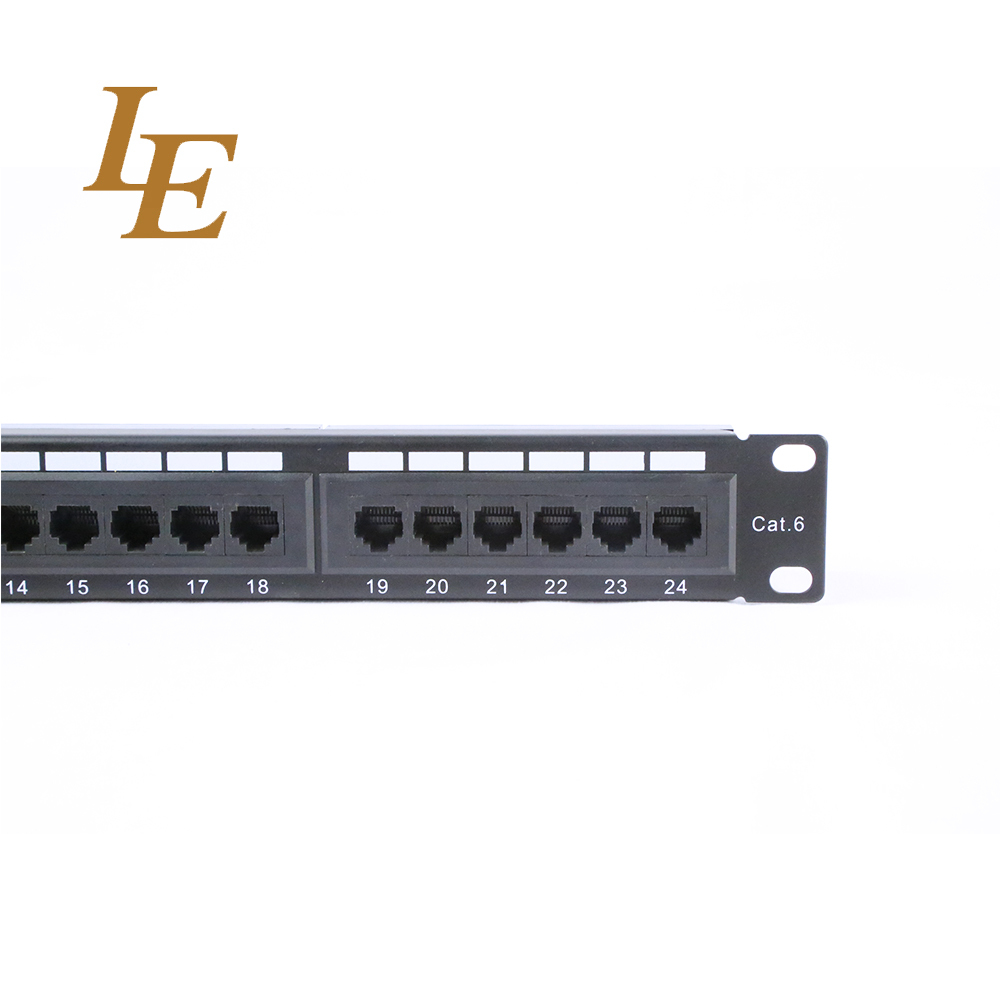

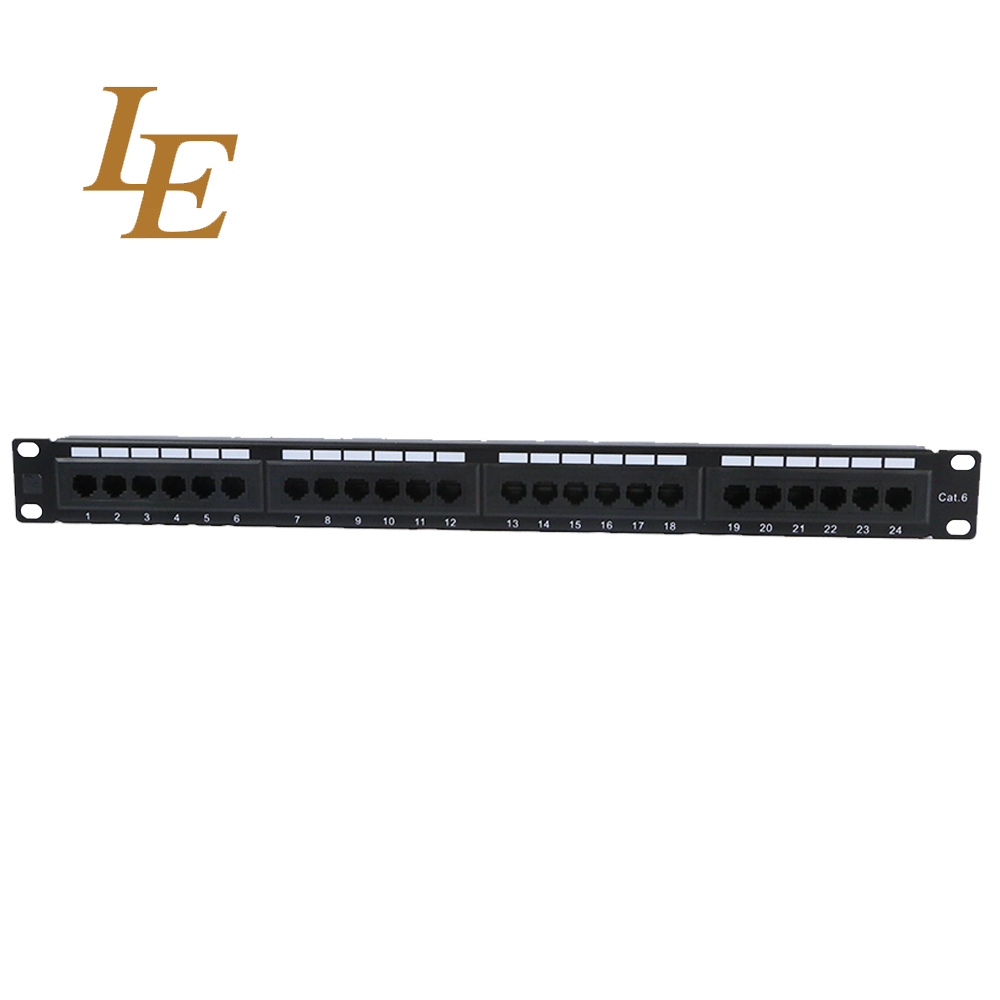

Name: 1U UTP 24 Port Cat5E Cat6 UTP Patch Panel
Brand: Ningbo Latitude Communication Equipment Co.,Ltd
SKU: Le projet de règlement n'est pas soumis à l'obligation de mise en œuvre.
Price: 7.00 USD
Availability: InStock

1U UTP 24 Port Cat5E Cat6 UTP Patch Panel

Informations de base

Lieu d'origine:	Ningbo, en Chine
Nom de marque:	LE
Certification:	CE/ISO/ROHS/TUV
Numéro de modèle:	Le projet de règlement n'est pas soumis à l'obligation de mise en œuvre.

Quantité de commande min:	100 pièces
Prix:	US$5-US$10
Détails d'emballage:	Emballage assemblé
Délai de livraison:	20 à 30 jours
Conditions de paiement:	L/C,T/T,Western Union,MoneyGram,D/P
Capacité d'approvisionnement:	5000 pièces par jour

Contactez

Type:

TPU

Port:

Matériel:

SRI

Temps d'insertion:

1000 cycles assortis

Taille:

Application du projet:

Les télécommunications

certificats:

CE/ISO/ROHS/TUV

Couleur:

Noir

19inch 2U UTP 12Port CAT5e Adn CAT6 Patch Panel With Cable Management Option

General Description:

1. 19inch 2U UTP 12Port CAT5e Adn CAT6 Patch Panel With Cable Management Option,
2. Operation temperature:-40°C to 60°C, Relative humidity:85%(30°C), Air pressure:70-106Kpa
3. Complete metalation and reed construction
4. Suitable for 22AWG/23AWG/24AWG/26AWG solid wires
5. Color: black, RAL 9005
6. Printing:white
7. Labelling fields:1-24

1U UTP 24 Port Cat5E Cat6 UTP Patch Panel 0

Features:

1. Front Panel: 1.5mm thickmness metal panel(SPCC), painting on surface
2. Metallic Frame: 1.5mm thickness
3. Housing material: ABS or PC, UL94-V0 or UL94-V2
4. Meet or exceed the current T568A and T568B standard

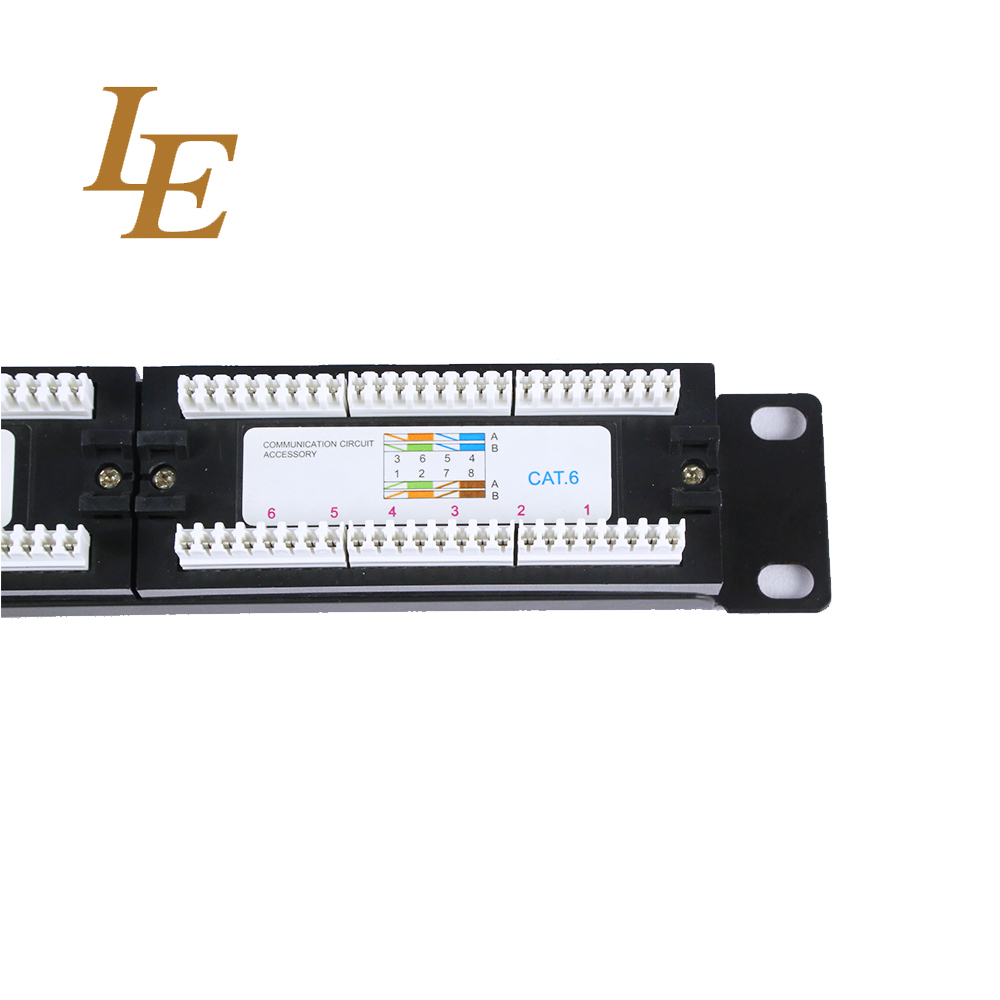

5. Termination: Dual IDC, 110 IDC, Krone IDC
6. Panel frame: black or Ivory electrostatic powder-coated steel
7. IDC contact material: phosphor brone with tin plating over nickel
8. contact material: phosphor brone with gold plating over nickel
9. Punching duration:≥250 times
10. Inserting duration:≥750 times
11. Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min
12. Insulation Resistance: 500M-ohm
13.High reliability and superior performance

1. Q: Are you a factory or trading company?

A: We are a Factory, Distributor and Trading Company.

2. Q: Where is your factory located? How can I visit there?

A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or

Shanghai airport, from home or abroad, are warmly welcome to visit us!

3. Q: Can you do OEM?

A: Yes, we can do OEM products. It's no problem.

4. Q: How can I get some samples?

A: We are honored to offer you samples.

5. Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling for to the every

end. Our factory has gained CE,ROHS,SGS authentication.
